pure overlock pleasure
Acclaim – baby lock overlock machine
Technical features
- a wide range of overlock stitches, including wave stitch
- Air threading of loopers and needles
- Automatic thread delivery system (ATD)
baby lock Acclaim – an overlocker with it all.
The baby lock Acclaim promises pure Overlock sewing fun. It has all the features that a home seamstress could wish for. Starting with Automatic Threading Systems for needles and loopers, through our patented and convenient Automatic Thread Delivery System (Auto tension) to well-thought-out and easily accessible controls. If you’re looking to enjoy your hobby without any stress, and bring your sewing ideas to life, the Acclaim is an excellent option. More space around the needles is a bonus for those with stiff fingers
Technical data
- Needles 2
- Threads 2/3/4
- Speed 1500
- Stitch length 0,75 – 4 mm
- Weight (kg) 11
- Size (cm) 42 x 37 x 32
- Differential Feed
- Needle Threader automatic
- Automatic Thread Delivery
- RevolutionAir™ Threading
- LED
- Safety cutout if foot is up
- Safety cutout if covers are open
- Wave seam
Air threading of loopers & needles
Threading an overlocker without the benefit of jet air threading can be a nightmare, with a particular threading order, a series of eyes and loops, and the need for a good pair of tweezers! Anyone who struggles with this quickly loses the fun of sewing. But there is an alternative!
The innovative threading systems of the baby lock Acclaim, makes it incredibly simple. The threads for both loopers and needles are threaded quickly and reliably at the touch of a button using a puff of air. All you have to do is select the desired thread, insert it and press the corresponding button. The overlock machine does the rest for you.
ATD system – automatic thread feed
Baby lock’s pioneering ATD (Automatic Thread Delivery) instantly removes all the trials of setting tensions every time the fabric is changed. This revolutionary system instantly resets the “tension” according to the stitch selected and thickness of fabric. It does not, however, rely on disks which slow down the thread, but on a series of plates which deliver the correct length of thread to create every type of stitch. This also enables a combination of different thread thicknesses in the looper, whilst maintaining a perfectly balanced stitch.
Countless overlock seams and hems
The baby lock Acclaim not only provides you with a professional seam, it also offers rolled hems, flatlock stitch and effective border stitches. The addition of decorative threads enhances the effect, making each project individual. The Acclaim also offers the (unique to baby lock) Wave Stitch. This stitch can be used to create extremely decorative finishes, turning even the simplest seam into an eye catching feature.
The large availability of decorative stitches, and ease of use leave the user free to run wild with her imagination!
Lots of comfort when sewing
Well thought-out down to the last detail, many small details on the Acclaim ensure even more sewing comfort. For example, the foot lift is on the side of the Acclaim, so that the foot can be easily raised and lowered with the right hand and from the front. It will not stitch with the foot raised, so no more accidentally crowded stitches! Needle changing is also even more convenient here. The needle screws are anchored, and no longer need to be tightened on removal of a needle.

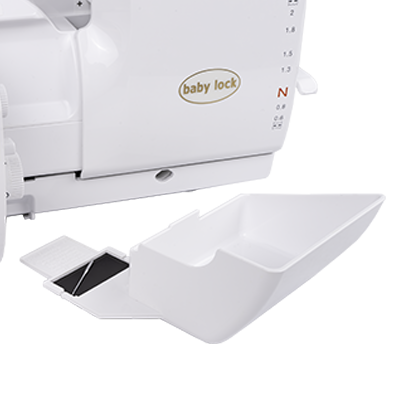

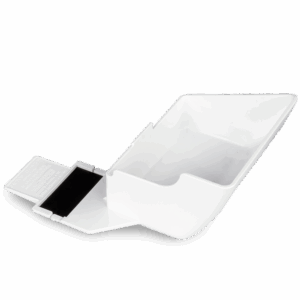

The needle collection tray is magnetic and there is also a magnetic storage surface on the accessory compartment – so needles etc. can no longer get lost.
Overlocker functions briefly explained
The baby lock looper system is based on industrial machines and is therefore particularly robust. With mechanical precision, reliable stitch formation is guaranteed at all times.
The highlight: the looper tubes can accommodate considerably thicker threads than other brands. This opens up completely new horizons for all kinds of thread fun.
The Acclaim has two innovative air threading systems. With the ExtraordinAir system, a compressor activated at the push of a button threads the looper threads reliably and quickly. The RevolutionAir system even allows the needles to be threaded using air. With these systems, threading the Acclaim is child’s play. Simply select the desired thread, put it on or insert it, press the corresponding button and the thread is threaded as if by itself.
Rolled hem, flatlock seam or border stitch: the wide range of possible uses of overlock seams invites you to experiment and decorate. With the Acclaim, the variety of seam games can be topped even further, because it can be used to create unique wave seams. The wave seam is a special decoration that turns even the simplest piece of fabric into an eye-catcher. These wave-shaped creations can only be made with baby lock sewing machines.
The differential feed can be used to significantly optimize the appearance of the sewn pieces. Unwanted seam puckering, unsightly gathered or protruding seams can easily be prevented, because the differential feed ensures optimal fabric transport. In addition, the setting options can also be used to deliberately achieve imaginative puckering effects.
When the adjustment button for the stitch width is turned clockwise or anti-clockwise, the chain tongue and the upper blade move synchronously to the right or left. Thanks to this special technology, the seam width can be adjusted very easily. The actual seam width changes and not just the cutting width as is the case with conventional sewing. Overcuts and undercuts are prevented and there is no need to adjust the amount of looped thread. The stitch becomes wider or narrower without the need for annoying and time-consuming adjustment.
Clearly arranged and accessible at all times, the stitch length can be adjusted with just one wheel. In the standard sewing area, the stitch length can be varied from 0.75 to 4 in the desired length. The setting values can be read off on a simple scale. At the same time, you can easily switch to the rolled hem function here without having to take any additional steps. In the rolled seam area, the chain tongue is in the lowered position. This enables a very narrow seam.
Another convenient feature of the baby lock Acclaim is the foot lifter attached to the side. The foot can be easily raised and lowered from the front with the right hand. This not only optimizes the work area, but also means you always have your sewing project in view and under control. The sewing machine also has an extra high, two-stage foot lift of up to 8 mm. This means that even higher layers of fabric fit between the foot and the feed dog.
The ATD system on the Acclaim is a groundbreaking innovation from our Japanese engineers. This is true auto tension, and self adjusts according to the fabric thickness. Thanks to this feature, a flawless seam is always created – regardless of the type of fabric or thread and without any manual readjustment! The tedious search for the right thread tension is a thing of the past with baby lock overlockers.
When sewing two-thread seams, the Acclaim’s subsidiary looper/converter can be easily activated. Since it is firmly attached to the upper looper, it cannot be misplaced or lost.
You can store important utensils in the practical accessory compartment, which is located under the thread spool holder. The delivery includes:
• Tweezers
• Needles
• Replacement needle screws
• Replacement knife
• Screwdriver for needle screws
• Brush with guide for inserting the needles
There is a magnetic storage area on the accessory compartment, e.g. for storing needles.
While most machines use slanted needles that can push and damage the fabric, the needles on baby lock sewing machines are arranged vertically and pierce directly into the fabric. This exclusive feature protects your fabric and prevents the needles from being crushed. It also gives you greater stitch security and power when sewing.
All baby lock sewing machines are very user-friendly and comfortable to sew. The features mentioned above are complemented by a number of other conveniences. All machines have long-lasting and powerful LED lighting, a stable telescopic thread guide, high stitch reliability and precisely adjustable foot pressure. The Acclaim also has a magnetic needle tray. The short blade/needle distance supports clean seam formation. The needle screws are also secured with a plate. This is convenient and protects the thread, because the screws no longer have to be screwed down when no needle is being used.
Wherever sewing takes place, fibers fly. This applies to overlock machines more than to any other sewing machine. Regular cleaning is essential due to the sewing dust. This prevents large amounts of fluff from piling up under the needle plate and affecting sewing. The side flap on the Acclaim can be opened, which makes cleaning much easier.
The Acclaim also has a safety feature. The machine does not sew if the flaps are open and/or the foot is up. This reduces potential sources of error.
Overlock seams
4-thread overlock
3-thread overlock, wide
3-thread overlock, narrow
3-thread rolled edge
2-thread flatlock/ ladder stitch, wide
2-thread Flatlock/ ladder stitch, narrow
2-thread picot stitch

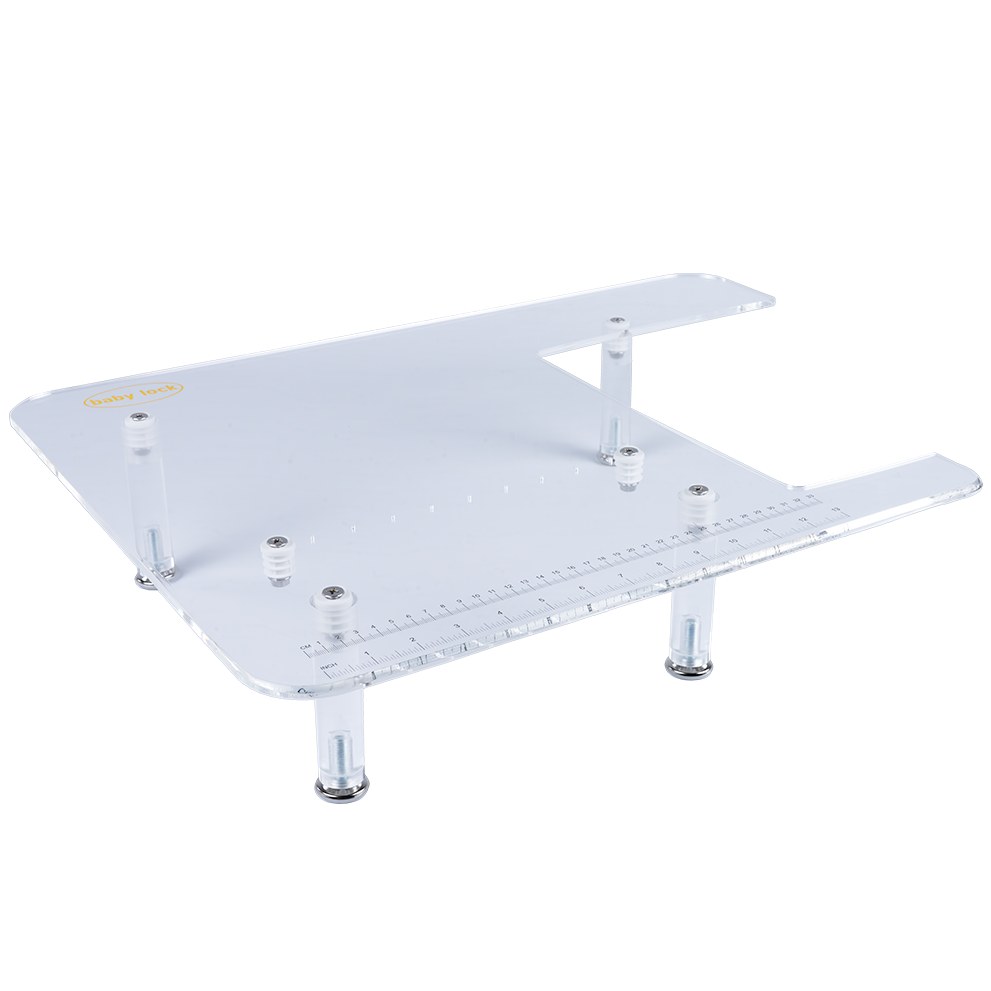

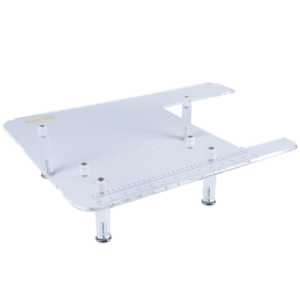

Overlock accessories
Buy Acclaim
baby lock specialist dealers are your experienced contact if you are interested in our machines or the extensive range of accessories. You can find a baby lock specialist dealer near you here.
Buy Acclaim
baby lock specialist dealers are your experienced contact if you are interested in our machines or the extensive range of accessories. You can find a baby lock specialist dealer near you here.
Prospectus
The baby lock Acclaim brochure is available for download here.
Buy Acclaim
You can find a baby lock retailer near you here.
Warranty extension
We offer you a 2+2 year warranty on your machine.
